Genesis OPAL – Unenclosed Vertical Platform Lift

Be the first to review this product

Availability:

In Stock

SKU:

opal

  • Low cost
  • Fast installation
  • Under Platform Obstruction Sensing
  • Ideal for Stage Access
  • Easy grip offset “D” handles
Call Icon Call for Price WhatsApp Icon Support

Description:

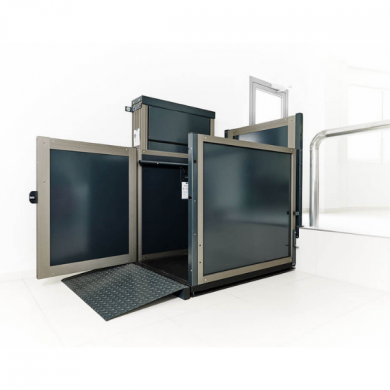

The Genesis OPAL vertical lift effortlessly moves passengers up and down short vertical distances, perfect for use on stages and porches. Equipped with platform walls, a platform gate, and an optional automatic folding ramp that move with the platform, it forms a protective barrier around passengers, ensuring their safety.

With a weight capacity of 340kg (750lbs) and the ability to provide access up to 1600mm (63″), the OPAL is well-suited for both indoor and outdoor applications, offering a cost-effective solution for enhancing accessibility.

Specification:

  • Rated Load
    Rated Load of 340 kg (750 lbs)
  • Platform size
    Standard: 914mm x 1242mm (36” x 48 7/8”).
    Optional: Mid-Size Platform: 914mm x 1394mm (36” x 54 7/8”)
    Large Platform: 1100mm x 1546mm (43 1/4” x 60 7/8”)
  • Configuration
    Standard: Straight through entry/exit
    Optional: 90 o entry/exit
  • Controls
    Up/Down continuous pressure directional controls
  • Warranty
    Standard: 24 months
    Optional: 12 months extended warranty (36 months total)OR 60 months extended warranty (84 months total)
  • Accessories
    Standard: Keyless operation. Grabrail on platform side wall. Audible Illuminated Emergency Stop/Alarm Switch
    Optional: Autodialer phone. Emergency battery lowering (Leadscrew drive only). Illuminated and tactile directional buttons. Power gate operator. Keyed call station and platform controls. Stationary loading ramp or platform mounted automatic folding ramp for installations without a pit. Electrical disconnect.
  • Drive System
    Standard: Leadscrew: 2 HP motor, travel speed at 3 meters (10 ft) per minute. Hydraulic: 3 HP motor Continuous Mains Powered with an auxiliary power system. Lift travels at 5.2 meters (17 ft) per minute.
    Optional: Hydraulic (full time battery operation): 3 HP 24VDC hydraulic motor lifts the platform at 5.2 meters (17 ft) per minute.
