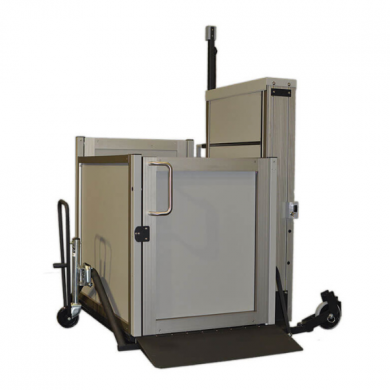

Genesis Staage Portable Vertical Wheelchair Lift
Availability: In stock
SKU:
spvl
- Portable
- Plug-in 120V power
- Adjustable upper travel limit
- Under platform obstruction sensor
Brands:
Description:
- Rated Load:
340 kg (750 lbs) - Speed:
3 meters (10 ft) per minute - Drive System:
2 HP Motor drives a 1” ACME screw - Travel Range:
Up to 44”) - Clear Platform Area:
Standard: 36” x 52 3/4” with lower landing platform gate.
36” x 54 1/2” without lower landing platform gate. - Safety Devices:
Self Locking Drive System.Emergency Stop Switch.
Audible Emergency Alarm.Under Platform Sensor.
Gate Interlocks.Lockout Key Switch.
Safety Drive Nut (engages if drive nut fails).
Manual emergency lowering - Footprint:
68 7/8” x 57 3/4” including wheels - Controls:
Up/Down continuous pressure directional controls - Power Requirements:
120 VAC mains power from a standard plug-in recepticle
The Genesis STAAGE lift offers a secure, user-friendly, and budget-friendly accessibility solution tailored for low-rise vertical barriers like stages and podiums. Its ease of operation allows it to be effortlessly wheeled away when wheelchair accessibility isn't needed. With all the expected safety features, the STAAGE ensures peace of mind, courtesy of Garaventa Lift.
Regulations concerning portable vertical lifts in public spaces differ across jurisdictions. To learn about using the STAAGE in your area, reach out to your local Garaventa Lift representative for guidance.
Specifications:
- Rated Load:
340 kg (750 lbs) - Speed:
3 meters (10 ft) per minute - Drive System:
2 HP Motor drives a 1” ACME screw - Travel Range:
Up to 44”) - Clear Platform Area:
Standard: 36” x 52 3/4” with lower landing platform gate.
36” x 54 1/2” without lower landing platform gate. - Safety Devices:
Self Locking Drive System.Emergency Stop Switch.
Audible Emergency Alarm.Under Platform Sensor.
Gate Interlocks.Lockout Key Switch.
Safety Drive Nut (engages if drive nut fails).
Manual emergency lowering - Footprint:
68 7/8” x 57 3/4” including wheels - Controls:
Up/Down continuous pressure directional controls - Power Requirements:
120 VAC mains power from a standard plug-in recepticle
