X3 - Inclined Platform Lift
Availability: In stock
SKU:
x3
- Wheelchair lift for residential or commercial applications
Brands:
Toggle Nav
- Low cost
- Reliable
- Fast/Quick Installation
- Wireless Call Stations
- Minimal space requirement
- Concealed Drive
- Narrow Profile when Folded

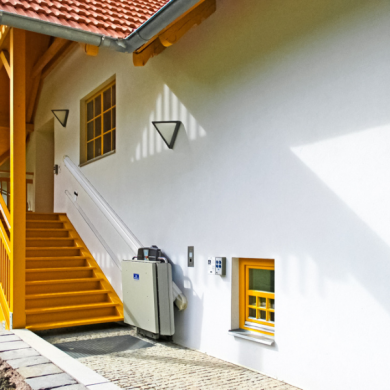

The X3, a straightforward and durable inclined platform lift by Garaventa Lift, boasts a 550 lb. load capacity along with battery operation and wireless call stations, making it swift and hassle-free to set up. Offering exceptional value, the X3 blends Garaventa Lift's renowned reliability and safety with cutting-edge technology.
In commercial settings, the X3 will be equipped with larger batteries for extended capacity, a spacious ADA-compliant platform, and powered fold and unfold functions, ensuring seamless operation and compliance with accessibility standards.
- Platform
A variety of platform sizes available - Power Requirements
120 VAC provides power to battery charger - Applications
Residential or Commercial. Commerical applications require conformance to the ADA Accessibility Guidelines and/or ASME A117.1 (check local requirements). - Rated Load
250 kg (550 lbs) - Drive System
Rack & Pinion - Speed
4 m/min (13 ft/min) - Platform Controls
Keyless with continuous pressure directional buttons, equipped with emergency stop switch - Overspeed Safety
On board the platform carriage - Safety
Emergency manual lowering and folding | Under platform obstruction detection | Bi-directional ramp sensing | Curved safety arms | Pedestrian safety lights. - Finishes
Champagne anodized extruded aluminum rails, Optional RAL colors (See your local Garaventa Lift dealer for details) - Optional Features
Wireless call stations, keyless (standard) or keyed with continuous pressure switches | Fully powered platform fold and unfold with powered ramps and arms | Attendant remote control | Fold-down seat with seat belt | Support towers | Keyed platform controls | Vandal resistant platform storage | Keyed platform lock
